SKU: 10627

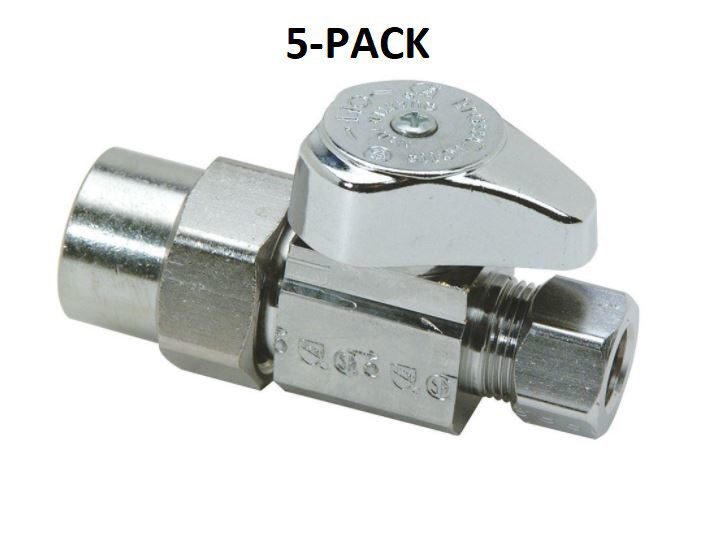

5-PACK BrassCraft 1/2″ CPVC Inlet x 3/8″ Comp Outlet 1/4-Turn Valve G2PR14X C1

BrassCraft 1/2 in. Nominal CPVC Inlet x 3/8 in. O.D. Compression Outlet 1/4-Turn Straight Valve controls water flow to household plumbing fixtures – faucets, toilets, dishwashers, icemakers, washing machines, etc. The straight valve is most often used where the water pipe enters the room from the floor. With a 90° turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.

  • Compatible with CPVC
  • Smooth, quarter-turn operation, on/off flow control with a 90° turn of the handle
  • 1-piece shut-off mechanism ensures smooth operation without freeze-ups even after long periods without use
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • 1-piece body construction for strength, durability and long-lasting performance
  • Chrome-plated brass
  • Temperature rating: 40° to 140° F
  • Pressure rating: 125 psi maximum
  • No-lead certified
  • IAPMO and CSA listed to ASME A112.18.1/CSA B125.1

Dimensions

Inlet Diameter (In.): 1/2
Inlet Size: 1/2 In.
Outlet Diameter (In.): 3/8
Product Depth (in.): 1.1880
Product Height (in.): 2.75
Product Length (in.): 2.750 in
Product Width (in.): 2.25
Valve Inlet Diameter (in.): 0.5

Details

Application: Potable Water
Color/Finish: Chrome-plated Brass
Color/Finish Family: Brass
Compatible Pipe Material: CPVC
Compatible Product: Faucet,Ice Maker,Other
Connection: CPVC x Comp
Features: Lead Free
Indoor/Outdoor: Indoor,Outdoor
Inlet Fitting End Type: OD
Material: Brass
Maximum Pressure (psi): 125
Maximum Working Temperature (F): 140
Outlet Fitting End Type: Compression
Pack Size: 1
Product Weight (lb.): 0.2494 lb
Stop Valve Type: Straight
Valve Configuration: Straight
Valve Connection: Solvent Weld
Valve Type: Stop

$48.99

Out of stock
