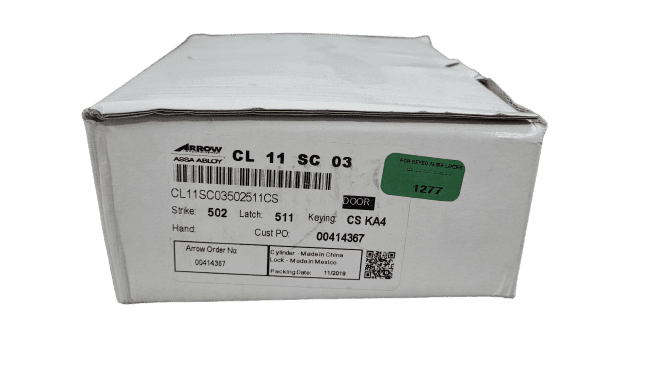

Arrow CL11-SC-03-LC Tubular Lock Bright Brass

Grade 2 Entrance Tubular Lock, Solar Lever, Conventional Less Cylinder, Bright Brass Finish, Non-handed

• Combining a variety of knob and lever designs, convenient installation and the Arrow benchmark for dependability, the Arrow C Series is perfect in most any space. It is constructed with a tubular chassis and meets the requirements of ANSI, A156.2, Series 4000, Grade 2.+
• The CL Series is a grade 2 tubular lever lock that has exceptional value and quality.
• Combining a variety of knob and lever designs, convenient installation and the Arrow benchmark for dependability, the CL Series is perfect in most any space.
  • Construction: Tubular chassis
  • Backset: Universal latch is standard. Adjustable for both 2-3/8″ (60mm) or 2-3/4″ (70mm).
  • Latch: Brass front. Supplied standard with 1″ x 2-1/4″ (25mm x 57mm) square corner, 1″ x 2-1/4″ radius corner and 1-1/8″ x 2-1/4″ (29mm x 57mm) square corner latch fronts. Available with drive-in latches.
  • Strike: 1-5/8″ x 2-1/4″ (41mm x 57mm) full lip strike standard. Available with 1-1/8″ x 2-3/4″ (29mm x 70mm) “T” strike, or 1-1/4″ x 4-7/8″ (32mm x 124mm) ANSI strike.
  • Door Thickness: Fits 1-3/8″ to 1-3/4″ (35mm-44mm) doors standard.
  • Color: Bright Brass
  • Color Code: 605/US3
  • Package Height: 2.75
  • Package Length: 6.25
  • Package Width: 5.5
