Arrow E60-26D E Series Grade 2 Deadbolt in Satin Chrome

Arrow E Series deadlocks are unsurpassed for value, quality and durability. Our tamper resistant rotating wrench-proof collar, steel deadbolt with hardened steel pin insert and concealed screws are security features that have made the E Series the most specified deadlock in its class.

Certification & Compliance:

• ANSI A156.5, Auxiliary Locks, Grade 2

Specifications: Housing:

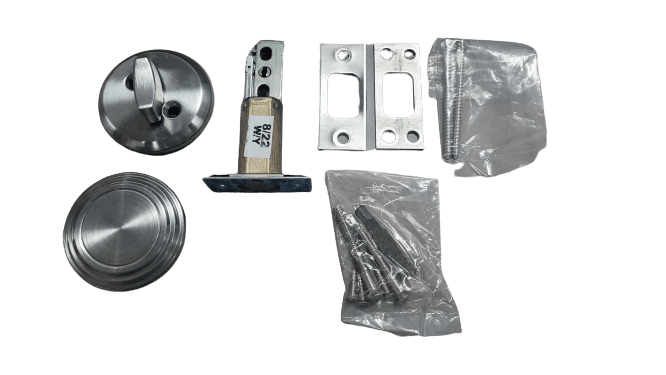

• Two-piece housing, with free spinning outer ring to prevent wrenching. Concealed mounting screws standard on double cylinder functions.

Thru-bolting:

• supplied with two 1/4″ (6.35mm) steel thru-bolts.

Deadbolt:

• 1″ (25.40mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.

Backset:

• 2-3/8″ (60.32mm)
• 2-3/4″ (69.85mm)

Deadbolt Fronts:

• 2-1/4″ (57.15mm) x 1″ (25.40mm) standard for 2-3/8″
  (60.32mm) backset
• 2-1/4″ (57.15mm) x 1-1/8″ (28.57mm) standard for 2-3/4″ (69.85mm) backset.
• Drive-in deadbolts are available.

Doors:

• 1-3/8″ (34.925mm) to 1-3/4″ (44.45mm) thick standard.

Strikes:

• Supplied standard with the #346 wood frame strike.
• The #345 metal frame strike is optional.

Handing:

• All functions are reversible.

Finish:

• 26D
