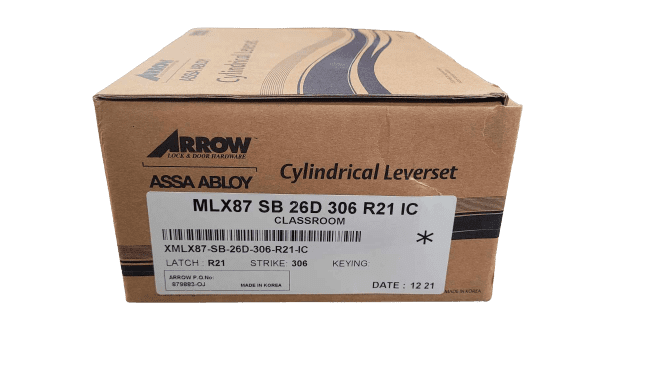

Arrow MLX87-SB-26D-306 Standard Duty Classroom Lever

Arrow MLX MLX87SB-26D-306 is a robust BHMA Grade 2 Classroom function lockset featuring a freewheeling lever for abuse resistance, two-screw lock install for quick installation

Suited for:
Standard duty commercial exterior and interior doors

Quality and Safety:

• ANSI/BHMA A156.2, Series 4000, Grade 2
• Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors.
• Federal Specification FF-H-106C
• Meets American with Disabilities Act Requirements. ANSI A117.1 Accessibility Code
• California State Reference Code–for levers returning to within 1/2″ (12.7mm) of door surface.

Door Preparation: (161 standard)

• Cross-bore hole – 2-1/8″
• Backset – 2-3/4″
• 1″ edge bore hole
• Mortise – width 1-1/8″,  height 2-1/4″
