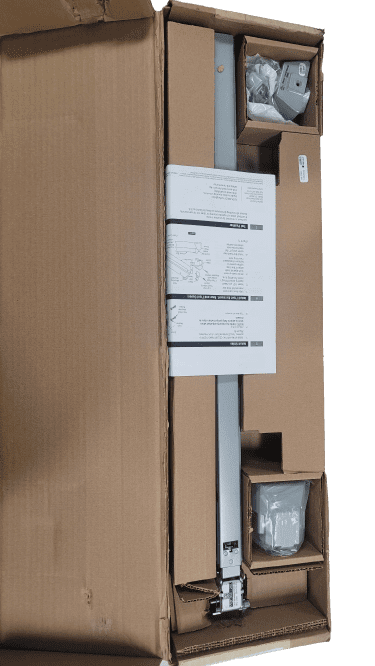

Corbin Russwin ED8200 689 Rim Pushpad Exit Device WO36

Heavy-duty steel construction and Grade 1 performance, priced for outstanding value. Meets rigorous life safety and security requirements, while offering pleasing aesthetics and trouble-free operation. Designed for high-use, high-abuse situations, ED8000 Pushpad Exit Devices can be teamed with a variety of Corbin Russwin trims to provide desired functions, styles and finishes in new construction and renovations

• 36″ Bar Length (WO36)
• Meets ANSI A156.3, Type 3, Grade 1 requirements
• Meets A117.1 Accessibility Code
• UL /cUL, All devices listed for safety as panic hardware; devices comply with UL 305 standards.

• Door Thickness: 1-3/4″ (44mm) standard.

  Backset: 2-3/4″ (70mm). Device and trim cover standard ANSI A115.2 (Type 161) cylindrical lock preparation. (Backset changes when mullion is used.)

  Stile: Minimum width 5″ (127mm).

  Projection: 2-1/2″ (64mm) low profile for barrier-free access.

  Latchbolt: 3/4″ (19mm) stainless steel pullman-type with stainless steel deadlocking latch.

  Dogging: Standard on ED8200 devices: single point 1/4 turn dogging.

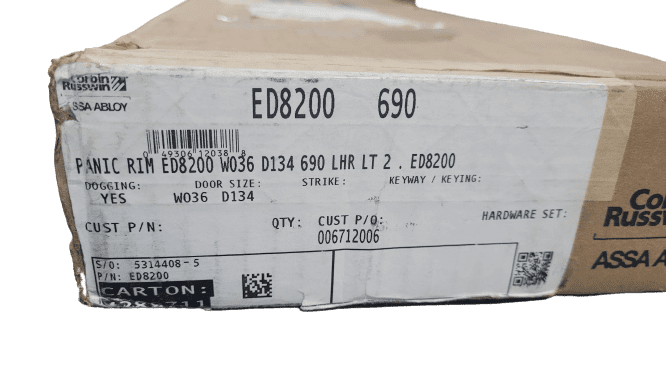

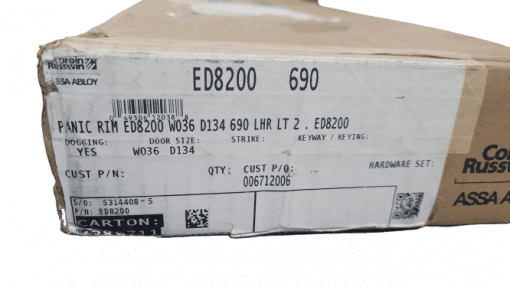

SOME OF THESE UNITS HAVE “690” For the Finish on the Box BUT they are all Finish “689” PAINTED ALUMINUM NOT BRONZE!
