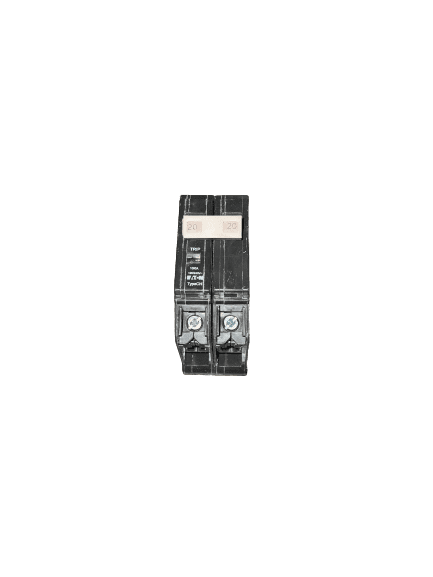

Eaton Type Ch 20 Amp Double-Pole Circuit Breaker CHF220

• Easy to install
• Easy to reset
• Ultimate performance
• Circuit breaker is clearly marked identifying amperage, ratings and Eaton brand
• Trip flag visibly indicates breaker status
• Exclusive Trip to OFF and simple one-step reset breaker feature eliminates the need to turn the breaker off before turning to the ON position
• Tri Drive screw accepts flat, Robertson or Phillips drivers, making it easier for electricians to install
• Space saving 3/4 in design accommodates more breakers per panel

Circuit breakers plug-on – double pole common trip – type ch 3/4 inches per pole amp rating=20 Quick make, quick break switch, inverse time element tripping operation and trip free handle. Thermal-magnetic trip curve. #14 – 8 wire range 15 to 30 amp, #14 – 2 wire range 40 to 70 amp, #10 – 1/0 wire range 100 amp. UL Listed, HACR rated, meets NEMA st andards and federal specifications, CSA certified. 120/240 volt. 10,000 AIR. 3/4 inches per pole.

Eaton has enhanced its premium Type CH residential circuit breakers, making the ideal even better. In addition to the industry exclusive”Trip to OFF” and simple 1-step reset feature, Eaton has added a trip flag to visibly indicate breaker status. Along with Tri-Drive screws and new markings that highlight ratings and the Eaton brand. These additional features truly make this product a enhanced offering for residential, light commercial and OEM applications. Quick make, quick break switch, inverse time element tripping operation and trip free handle. Thermal-magnetic trip curve. #14 – 8 wire range 15 to 30 amp, #14 – 2 wire range 40 to 70 amp, #10 – 1/0 wire range 100 amp. UL Listed, HACR rated, meets NEMA st andards and federal specifications, CSA certified. 120/240 volt. 10,000 AIR. 3/4″ per pole
