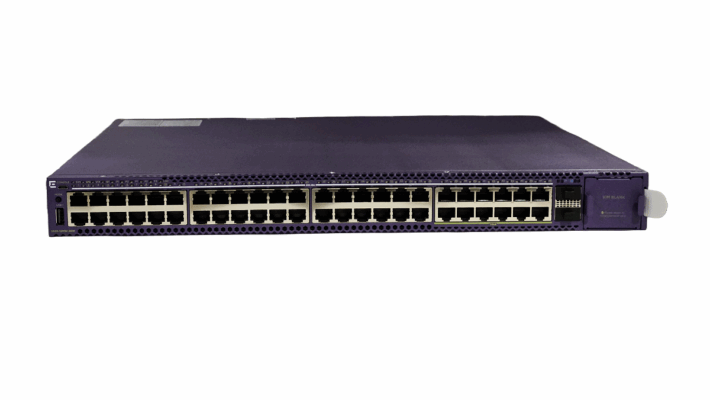

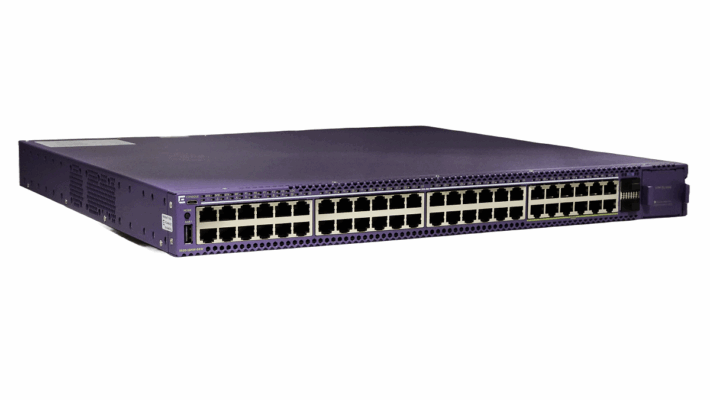

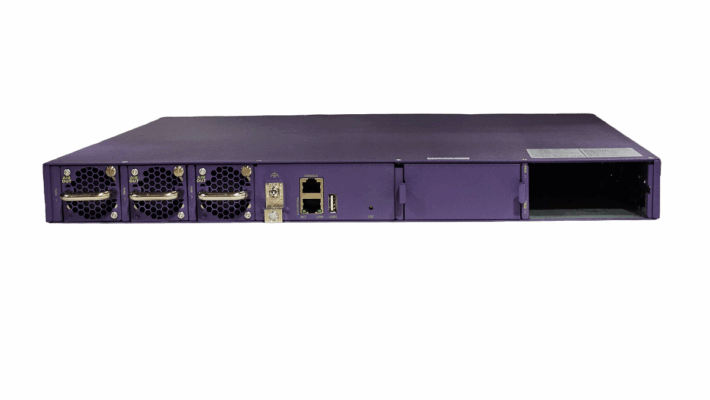

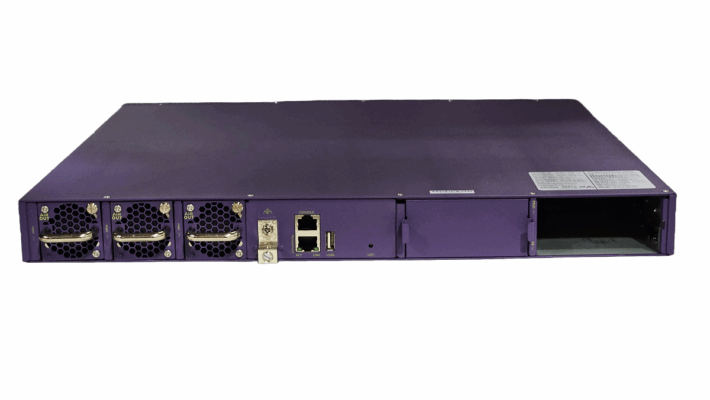

Extreme Networks 5520 48-Port 90W PoE | 12 Ports Multi-Rate Switch 5520-12MW-36W

Extreme Networks 5520 48-Port 90W PoE | 12 Ports Multi-Rate Switch 5520-12MW-36W

Brand: Extreme Networks

MPN: 5520-12MW-36W

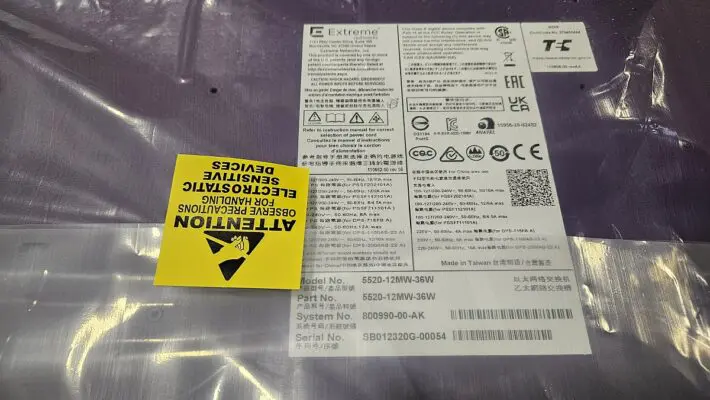

Condition: NEW, We will open before shipping for pictures/insurance.

Power Supply Not Installed

Primary Information:
Product Description: Extreme Networks Extreme switching 5520 Series 5520-12MW-36W – Switch – 48 Ports – Managed – Rack-mountable
Device Type: Switch – 48 Ports – Managed – Stackable
Enclosure Type: Rack-mountable 1u
Subtype: 5 Gigabit Ethernet
Ports: 12 X 100/1000/2.5g/5g (poe+) + 36 X 10/100/1000 (poe+)
Power Over Ethernet (poe): Poe+
Performance: Aggregate Switching Bandwidth: 792 Gbps ¦ Forwarding Performance: 589.3 Mpps
Features: 3 Fan Trays, Energy-efficient Ethernet (eee), Media Access Control Security (macsec)
Compliant Standards: Ieee 802.3ab, Ieee 802.3ae, Ieee 802.3aq, Ieee 802.3az, Ieee 802.3ba, Ieee 802.3bm, Ieee 802.3by, Ieee 802.3bz, Ieee 802.3bt
Power: ac 120/230 V (50/60 Hz) – Power Supply Not Installed
Power Redundancy: Optional
Dimensions (wxdxh): 17.4 In X 17.4 In X 1.7 In

General Information:
Device Type: Switch – 48 Ports – Managed – Stackable
Enclosure Type: Rack-mountable 1u
Subtype: 5 Gigabit Ethernet
Ports: 12 X 100/1000/2.5g/5g (poe+) + 36 X 10/100/1000 (poe+)
Power Over Ethernet (poe): Poe+
Performance: Aggregate Switching Bandwidth: 792 Gbps ¦ Forwarding Performance: 589.3 Mpps
Max Units In A Stack: 8
Features: 3 Fan Trays, Energy-efficient Ethernet (eee), Media Access Control Security (macsec)
Compliant Standards: Ieee 802.3ab, Ieee 802.3ae, Ieee 802.3aq, Ieee 802.3az, Ieee 802.3ba, Ieee 802.3bm, Ieee 802.3by, Ieee 802.3bz, Ieee 802.3bt

Expansion / Connectivity:
Interfaces: 12 X 100/1000/2.5g/5g Rj-45 Poe+ ¦ 36 X 1000base-t Rj-45 ¦ 2 X Network Stack Device Qsfp28 Stacking ¦ 1 X Serial (console) Rj-45 ¦ 1 X Management (gigabit Lan) Rj-45 ¦ 2 X Usb Type A ¦ 1 X Console (micro-usb) Type B
Expansion Slots: 1 (total) / 1 (free) X Versatile Interface Module (vim)

Power:
Power Device: Internal Power Supply (not Installed) – Hot-plug
Max Supported Qty: 2
Power Redundancy: Optional
Voltage Required: Ac 120/230 V (50/60 Hz)

Miscellaneous:
Compliant Standards: Bsmi, Iec 61000-4-2, Iec 61000-4-3, Iec 61000-4-4, Iec 61000-4-5, Iec 61000-4-6, Iec 61000-4-8, Sabs, En55024, As/nzs 60950-1, En 61000-4-4, En 61000-4-3, Ccc, Emc, Ices-003 Class A, En 61000-4-5, En 61000-4-11, En 61000-4-8, Ul 60950-1, Iec 60950-1, En 60950-1, Kcc, En 6100-3-2, Cdrh, Vcci Class A, Eac, En 300 386 V1.6.1, Rohs 2011/65/eu, En 6100-4-2, En 55011 Class A, Cispr 11 Class A, Weee 2012/19/eu, Fcc Cfr47 Part 15 A, Lvd 2014/35/eu, Gb 4943.1-2011, En 6100-3-3, Directive 2014/30/eu, Cns 14336-1, En 62368-1, Iec 62368-1, En 55032 Class A, Nrcs, En/etsi 300 753, Astm D3580, Cispr 24:2010 Class A, Acma Rcm, Cispr 32 Class A, En 60825-1 Class 1, Can/csa-c22.2 No. 60950-1, Ul 62368-1, China Rohs Sj/t 11363-2006, Rohs Cns 15663, En/etsi 300 019-2-1 V2.1.2 – Class 1.2, En/etsi 300 019-2-2 V2.1.2 – Class 2.3, En/etsi 300 019-2-3 V2.1.2 – Class 3.1e, Fcc Cfr21 Part 1040.10, As/nzs Cispr 32, Gb/t9254-2008, Can/csa-c22.2 No. 62368-1-14

Dimensions & Weight:
Width: 17.4 In
Depth: 17.4 In
Height: 1.7 In

Environmental Parameters:
Min Operating Temperature: 32 °f
Max Operating Temperature: 122 °f
Humidity Range Operating: 10 – 95% (non-condensing)
Min Storage Temperature: -40 °f
Max Storage Temperature: 158 °f
Humidity Range Storage: 10 – 95% (non-condensing)
