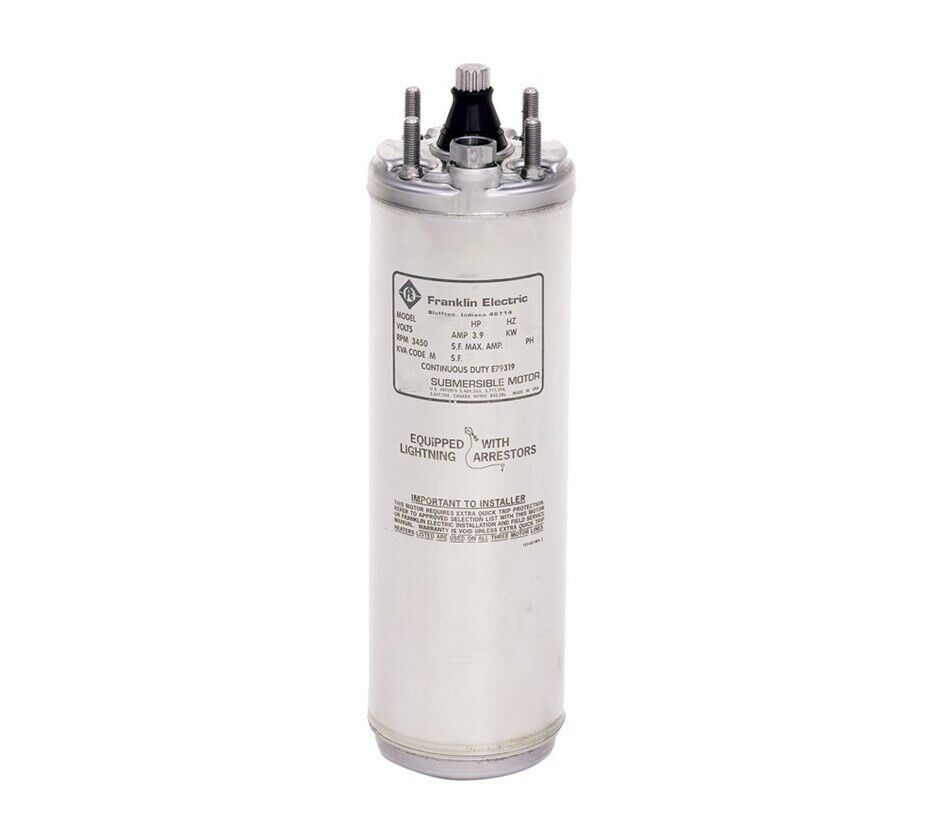

Franklin 4″ Submersible 2 Wire 1PH Motor 3/4 HP 230V 2445079004GS,2445079004S

SKU: 13805

Applications

These motors are built for dependable operation in 4” diameter or larger water wells.

Basic Features

Single-phase Voltage 230 V 60 Hz, 220 V 50 Hz
Three-phase Voltages 200 V, 230 V, 380 V, 575 V 60 Hz, 460/380 V 60/50 Hz
Corrosion-Resistant Construction
Stainless Steel Splined Shaft
Hermetically-Sealed Windings
Anti-Track Self-Healing Resin System
Water Lubrication
Filter Check Valve (Water Well)
Kingsbury-type Thrust Bearing
Pressure Equalizing Diaphragm
Built-in Lightning Arrestors (single-phase)
Removable Water-Bloc™ Lead installed in 60 Hz and dual frequency rated water well motors. Consult factory for additional leads
NEMA Pump Mounting Dimensions
UL 778 Recognized (North American Voltages)
CSA C22.2 #108 Certified
Sand Fighter Slinger
