GE PowerMark Gold 100 Amp 20-Space 20-Circuit Indoor Main Breaker Value Kit

SKU: 14602

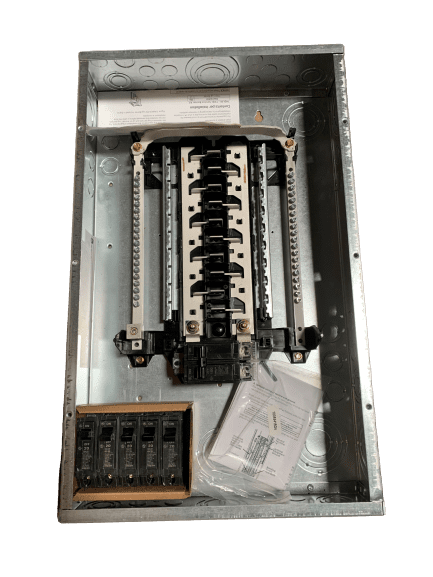

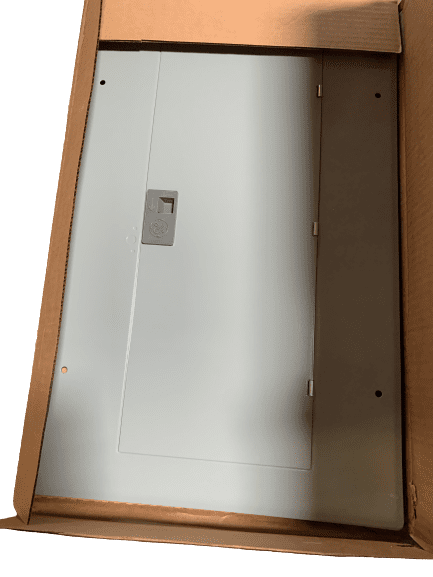

This bad boy is brand spankin’ new. Only opened to make sure it was brand new, which my suspicions were rightfully confirmed. See pictures!



This value kit includes 5 20 Amp Single-Pole THQL 1 in. Circuit Breakers. The load center includes a sturdy tin-plated copper buss bar and a galvanized box for increased durability and reliability. The one-piece interior removes and re-installs easily. Indoor NEMA 1 enclosure with combination surface/flush front. This load center is UL listed and ANSI Certified.

  • Rust-resistant galvanized box
  • Highly conductive copper buss bar
  • Factory-installed main breaker, full-length neutral bars, top or bottom feed and self-adjusting, dead-front cover
  • 100% rated split neutral on each side
  • Single-phase, 3-wire, 120/240-Volt and 22K AIC rating
  • All neutral holes rated for 14-4 wire
  • Accepts GFCI and AFCI breakers
  • UL listed and ANSI certified
  • Indoor fronts for surface or flush installations
  • Includes 5 THQL1120 20 Amp single-pole circuit breakers
  • Includes select circuit breakers

Dimensions

Load center depth (in.): 3.75
Load center height (in.): 23.13
Load center width (in.): 14.38

Details

Electrical Product Type: Load Center and Breaker Kit
Indoor/Outdoor: Indoor
Load Center Mounting Type: Surface
Load Center Type: Main Breaker
Maximum Amperage (amps): 100
Mounting Type: Plug-On
NEMA Configuration: NEMA 1
Number of Circuits: 20
Number of Spaces: 20
Phase Type: 1 Phase
Product Weight (lb.): 25
Voltage (volts): 240

$85.99

Out of stock
