This is for LOCAL PICKUP ONLY. If you would like a freight quote, or to inquire about picking up locally, please do not hesitate to call or email us to get more information!

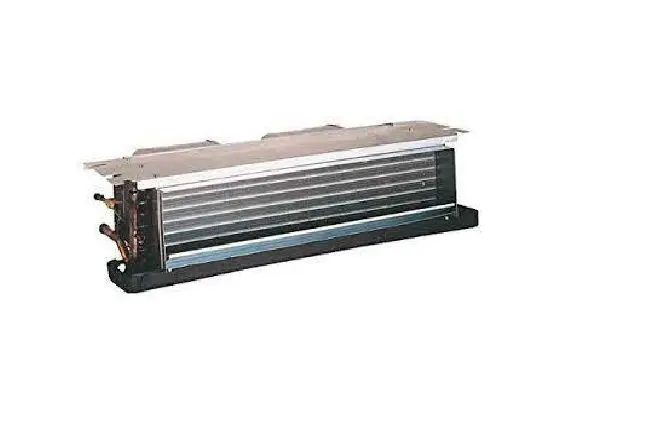

Goodman air handlers are an integral part of finishing a total home environment control system. The ACNF plays a key role in reducing indoor humidity, creating a much more comfortable environment. In addition, the ACNF240816 works with the multi-speed PSC motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
- Galvanized-Steel Construction
- Galvanized-Steel is corrosion resistant, requiring less maintenance to remain at peak efficiency.
- Easy Installation
- The ACNF Air Handler can be installed vertically on the wall or on the stud, giving you the freedom to pick between whichever fits your needs best.
Refrigerant Type: 22/R-410A
Blower Motor: Multi-Speed
Configuration: Ceiling Mounted
Performance Capacity: 2.0 Tons
Electric Heat Capacity: 7.3 kW
Maximum Air Flow: 880 CFM
Minimum Air Flow: 840 CFM
Electrical Data Voltage: 208/230 Volts
Minimum Circuit Ampacity: 36.1 Amps
Recommended Breaker Size: 40 Amps
Dimensions:
Suction Connection Size: 3/4 Inch
Liquid Connection Size: 3/8 Inch
Drain Outlet Diameter: 3/4 Inch
Product Height: 10 Inches
Product Width: 43 1/4 Inches
Product Depth: 11 3/8 Inches
Product Weight: 54 Pounds
Shipping Weight: 69 Pounds
