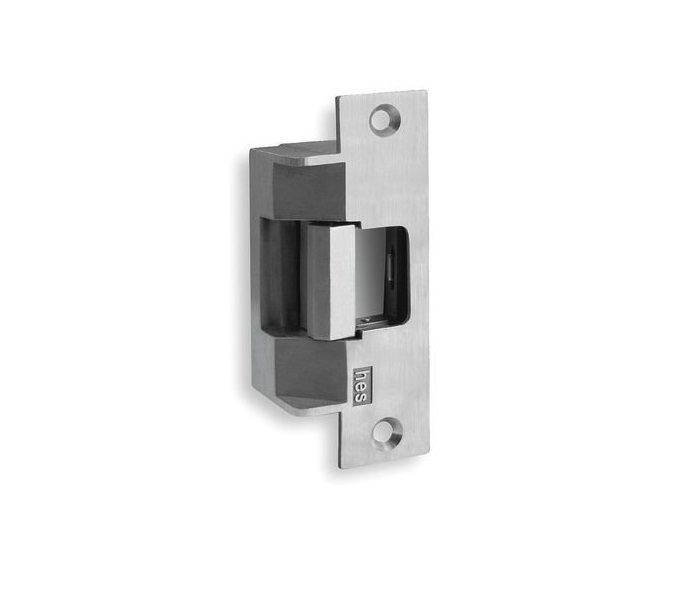

HES 7501-12D-630 Elec. Strike, 12VDC, H.Duty, Fail Safe/Secure, Cylin.

Electric Strike, For Use With Cylindrical Locksets, Performance Heavy-Duty, Failure Mode Fail Safe or Fail Secure, Input Voltage 12V DC, Door Frame Type Hollow Metal, Faceplate Width 1 1/4 in, Faceplate Height 4 7/8 in, Faceplate Depth 1 11/16 in, Pull Force 1,500 lb, Grade 1, Fire Rated 3 hr, Finish Satin Stainless Steel, Material Stainless Steel, Bolt Throw Up to 3/4 in, Strikes 500,000 Cycles, Features Non-Handed, Shims for Horizontal Adjustment

Features

• Fire Rated: 3 hr
• Door Frame Type: Hollow Metal
• Bolt Throw: Up to 3/4 in
• Grade: 1
• Finish: Satin Stainless Steel
• Standards: UL10 C, UL 1034, ANSI/BHMA 156.3, NFPA-252, ASTM-E152, MEA New York City, UBC-7-2-94
• Failure Mode: Fail Safe or Fail Secure
• Input Voltage: 12V DC
• Faceplate Width: 1 1/4 in
• For Use With: Cylindrical Locksets
• Item: Electric Strike
• Features: Non-Handed, Shims for Horizontal Adjustment
• Faceplate Height: 4 7/8 in
• Pull Force: 1,500 lb
• Material: Stainless Steel
• Strikes: 500,000 cycles
• Faceplate Depth: 1 11/16 in
• Performance: Heavy-Duty
