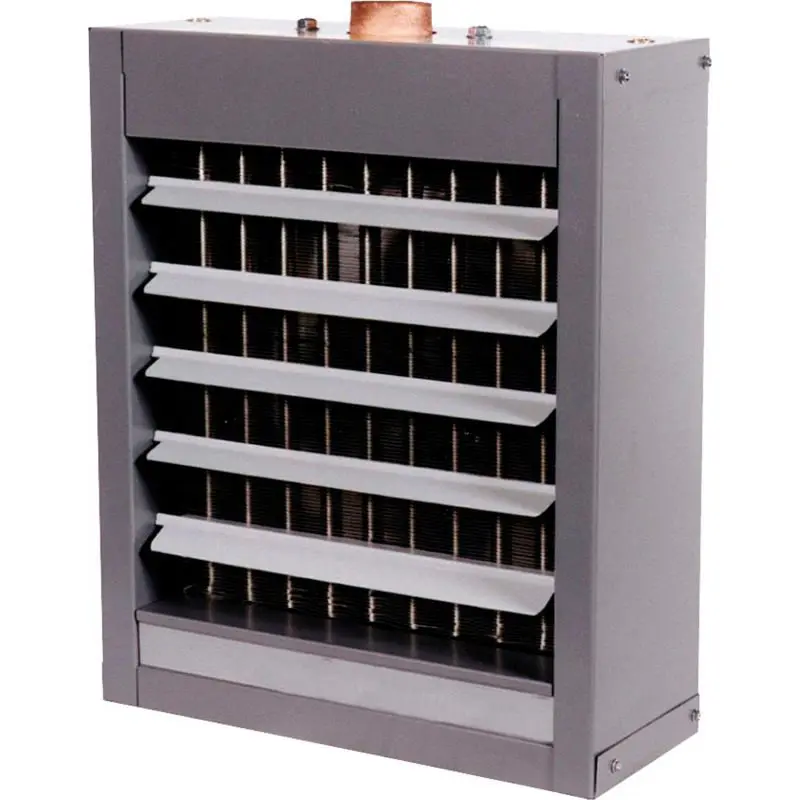

Horizontal Hydronic Unit Heater, Header Type Coil Style, 17400 BTU – HBB024

Header type coil style, 24,000 BTU horizontal hydronic unit heater, OSHA fan guard standard, approved for residential/commercial water/steam applications, 20 gauge steel casing, seamless copper tubing coil with aluminum fin design, coil brazed into extruded header junctions, ETL certified at 200° EWT and 2 psi steam.

• BRAND:Beacon-Morris
• LENGTH INCHES: 16
• WIDTH INCHES: 11
• HEIGHT INCHES: 20
• FAN DIAMETER INCHES: 10
• MAXIMUM MOUNTING HEIGHT FEET: 8
• WEIGHT LBS: 30
• ASSEMBLY: Assembled
• CONSTRUCTION: Steel
• MANUFACTURER PART#: HBB024
• INPUT (BTU/H):  2 LB STEAM 60°F ENTERING AIR24000
• OUTPUT (BTU):  HOT WATER 200°F IN 60°F ENTERING AIR17400
• CFM HIGH: 450
• RPM: 1550
• OUTLET VELOCITY FPM: 450
• FINAL AIR TEMPERATURE °F: (STEAM)109
• FINAL AIR TEMPERATURE °F:  (HOT WATER)96
• VOLTAGE: 120
• PHASE: 1
• WATTS HIGH: 16
• HEAT THROW FEET: 24
• WATER FLOW (GPM): 1.8
• TYPE: Horizontal
• COLOR: Gray
• SQUARE FOOT (EDR) EQUIVALENCE OF DIRECT RADIATION: 100
• AMPS HIGH: 0.8
• PRESSURE DROP FT: ./H200.014
• HEAT SPREAD FEET: —
• CONDENSATE LBS PER HOUR: 24.5
