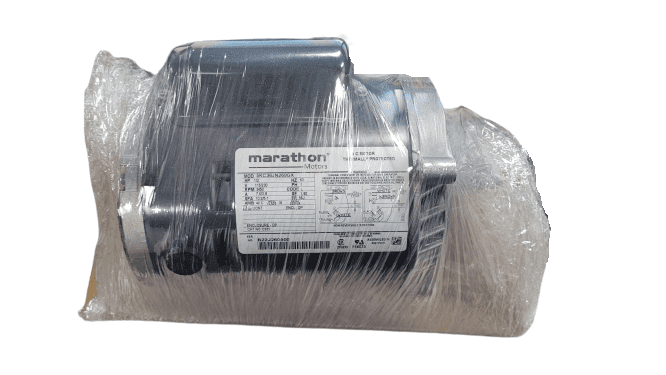

Jet pump motor is single phase with one-speed operation. Runs at 1/2 hp, with a maximum speed of 3600 rpm56J frame with open drip proof (ODP) enclosure, C-face mounting, and ball bearing system
1/2 hp 3600 RPM, 7.6/3.8 amps, 115/230 volts, Capacitor Start / Induction Run
NEMA 56J Frame, 5’8″ dia. by 1-5/8″ long threaded stainless steel shaft, 60 Hz
Service Factor: 1.6, Overload protection: Auto
No base, CW rotation viewed opposite shaft end, Ball Bearings; Class B Insulation
