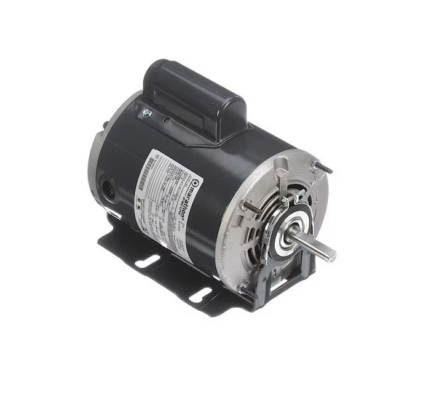

Marathon Motors 115/208-230V 1/3-HP 1725 RPM Fan and Blower Motor – MB315 B315

Brand: Marathon

MPN: 048C17D2044

B315 MARATHON 1/3HP Single Phase Fan & Blower Electric Motor is designed for applications like commercial fans and blowers, direct and belt drive air handlers and exhaust fans.

Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 5.8/3.1-2.9 Full Load Amps, 48Z Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal

• This 3-phase condenser fan motor features an open dripproof enclosure design.
• Use to operate condenser fans in refrigeration or air conditioning equipment.
