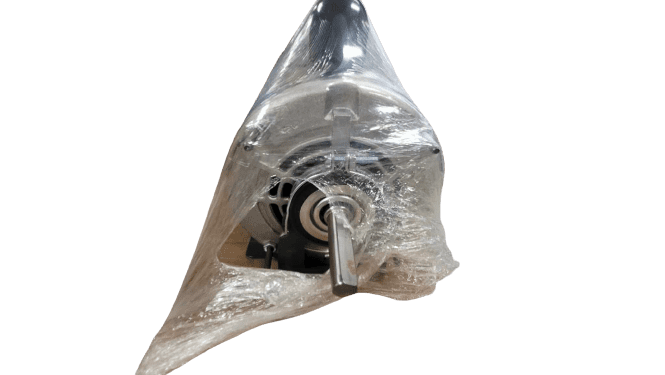

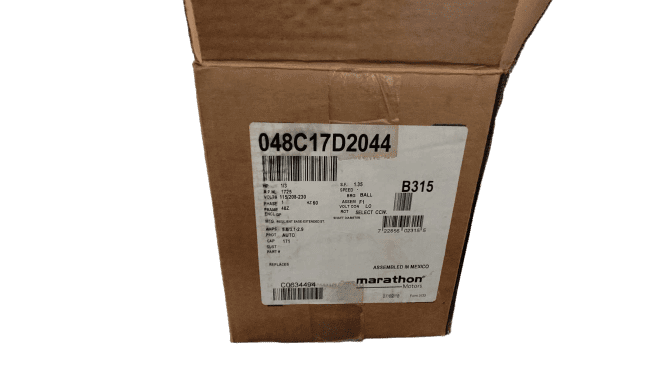

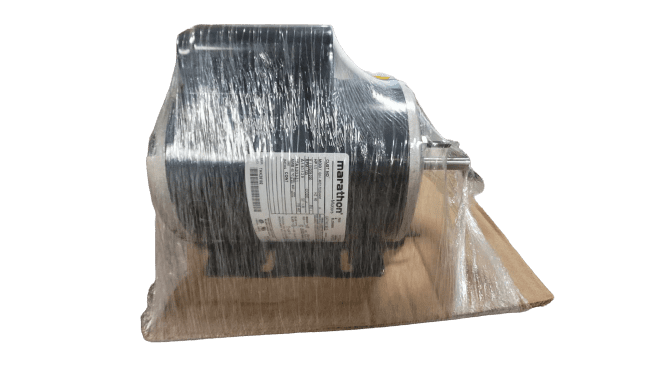

Marathon Motors- Fan Motor 1/3 HP 1725 rpm 48Z 115/208-230V 048C17D2044

Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1/3 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 5.8/3.1-2.9 Full Load Amps, 48Z Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal

• This 3-phase condenser fan motor features an open dripproof enclosure design.
• Use to operate condenser fans in refrigeration or air conditioning equipment.
