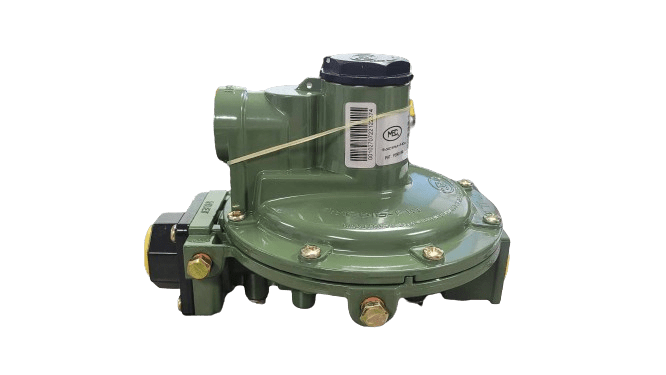

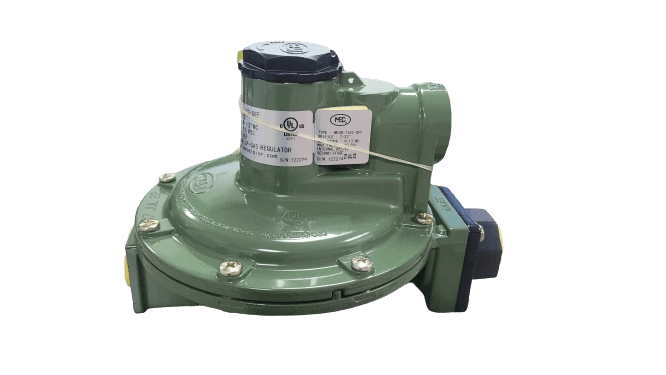

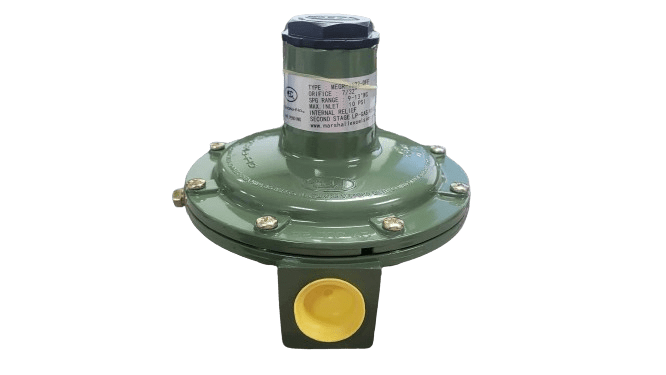

MEGR-1622-DFF 2nd Stage Regulator with 0.75 in. Inlet x 0.75 in. Outlet Valve

Offers all of the same features as the compact MEGR-1122 Series but in a full size, high capacity version. Our full size second stage regulators have a large fabric reinforced diaphragm for superior downstream regulation, heavy-duty wrench ATS, and a large 3/4 FNPT tapped drip lip vent to help prevent relief valve blockage. The MEGR-1622 Series have both the inlet and outlet in line where the MEGR-1652 series have a rear discharge back mount outlet for convenient wall mount applications.

• Maximum inlet pressure: 10 psig
• Orifice size: 0.219
• Capacity in BTU/H LPG -1,300,000
• Outlet adjustment range: 9-13 in. WC
