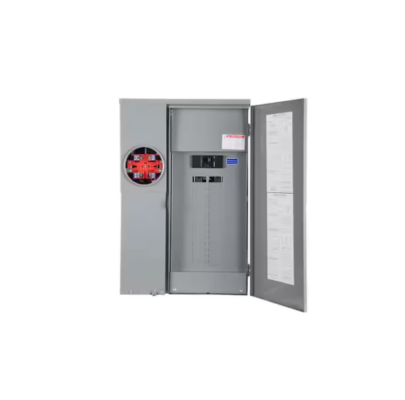

Square D Homeline 200 Amp 30-Space 42-Circuit Outdoor Main Breaker SC3042M200PS

Square
SKU: 22818

Brand: Square D

MPN:SC3042M200PS

The Square D Homeline 200 Amp 30-Space 42-Circuit Outdoor Surface Mount Solar-Ready Combination Meter Socket and Main Breaker Load Center for Plug-on Neutral breakers is UL listed for residential and commercial power distribution. This combination service entrance device (CSED) is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers. Homeline CSEDs are designed for the value-minded contractors, remodelers, builders and homeowners. Homeline CSEDs are engineered for fast installation and wire savings.

  • Square D Homeline 200 Amp 30-Space 42-Circuit Outdoor Ring-Type Surface Mount Solar-Ready Main Breaker Plug-On Neutral CSED
  • Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault and dual function breakers on any space
  • Solar-ready for new or future installations with provisions for field-installed CTs on line bus
  • Accepts solar ready sub-feed lug kit SR69064A for solar connections ahead of the main breaker
  • Meets EUSERC specifications
  • Factory-installed 200 Amp main breaker
  • Rated 120/240 VAC and 22,000 AIR short circuit current rating
  • Ground and neutral bars accept up to (3) #10-14 equipment grounds
  • 4 jaw ring type meter socket
  • Surface mount NEMA type 3R enclosure for outdoor installation
  • Accommodates plug-on secondary surge arrestor, and features a plug-in design for easy installation
  • Thermoplastic interior assembly is among the most rugged in the industry
  • Slot/square drive screws let you use either standard flat blade screwdriver or square-head driver for positive drive and proper torque
  • Bypass type-none
  • UL Listed and ANSI certified

$269.99

2 in stock
